Description

Key Details

Brand: 326POWER
Manufacturer: 326POWER Japan
Product: Gachabari WIDE Front + Rear Fender Set Toyota 86 Early/Late Model
SKU: Gachabarifender86
Category: Aero
Subcategory: Fenders
Product Type: Complete front and rear extreme wide-body fender package
Compatible Vehicle: Toyota 86 Early Model / Late Model
Lineup: Gachabari WIDE Toyota 86
Front Set: 4-piece Front Fender package
Rear Set: 2-piece Rear Fender package
Total Main Fender Pieces: 6 pieces
Front Width Increase: Approximately 150 mm per side
Rear Width Increase: Approximately 200 mm per side
Rear Arch Width: Approximately 50 mm
Rear Arch Raise Options: Approximately 10 mm or 20 mm
Rear Set Additional Item: Fuel filler cap included
Front Design: Two-piece structure per side with large air-dam and air-duct styling
Rear Design: One-piece main fender structure per side with five-air-duct styling
Late Model Note: Dedicated bumper-attachment configuration available
Early Model Rear Note: Some modification required when fitting the rear fenders
Finish: Unpainted white gel coat finish
Installation Requirement: Extensive test fitting, body modification, alignment, preparation work, and painting required
Common Use: Extreme wide-body builds, stance cars, show vehicles, demo cars, large-wheel setups, and highly customized Japanese tuning projects.

Set Content

This package combines the complete Gachabari WIDE front and rear fender systems. The front package consists of four pieces in total and uses a two-piece construction on each side, while the rear package consists of two main rear fender sections with the fuel filler cap included. Together, these components create the complete Gachabari WIDE body width rather than requiring the front and rear fender sets to be purchased separately.

Common Applications

The 326POWER Gachabari WIDE Front + Rear Fender Set is intended for Toyota 86 owners who want a full wide-body transformation rather than a mild fender extension. With approximately 150 mm of added width per side at the front and 200 mm per side at the rear, the package is particularly suited to extreme stance setups, wide wheel and tire combinations, show cars, demo vehicles, and heavily customized builds. Wheel width, offset, tire size, suspension height, steering clearance, suspension travel, and overall body alignment should be planned together with the conversion. Final compatibility depends on whether the vehicle is an early or late model, existing body condition, bumper configuration, wheel and suspension setup, and the amount of fabrication required. If you are unsure whether this Gachabari WIDE Front + Rear Fender Set is suitable for your Toyota 86, please contact us before ordering. Contact us.

326POWER Character

326POWER is known for extreme Japanese stance styling, aggressive wheel fitment, ultra-low vehicle setups, and wide-body designs with unmistakable visual presence. The Gachabari WIDE Toyota 86 represents one of the strongest expressions of this identity, using dramatic body width rather than subtle factory-style extensions. The approximately 150 mm front and 200 mm rear increases give the Toyota 86 proportions intended to appear exceptionally wide and visually powerful from virtually every angle.

Gachabari WIDE Design Concept

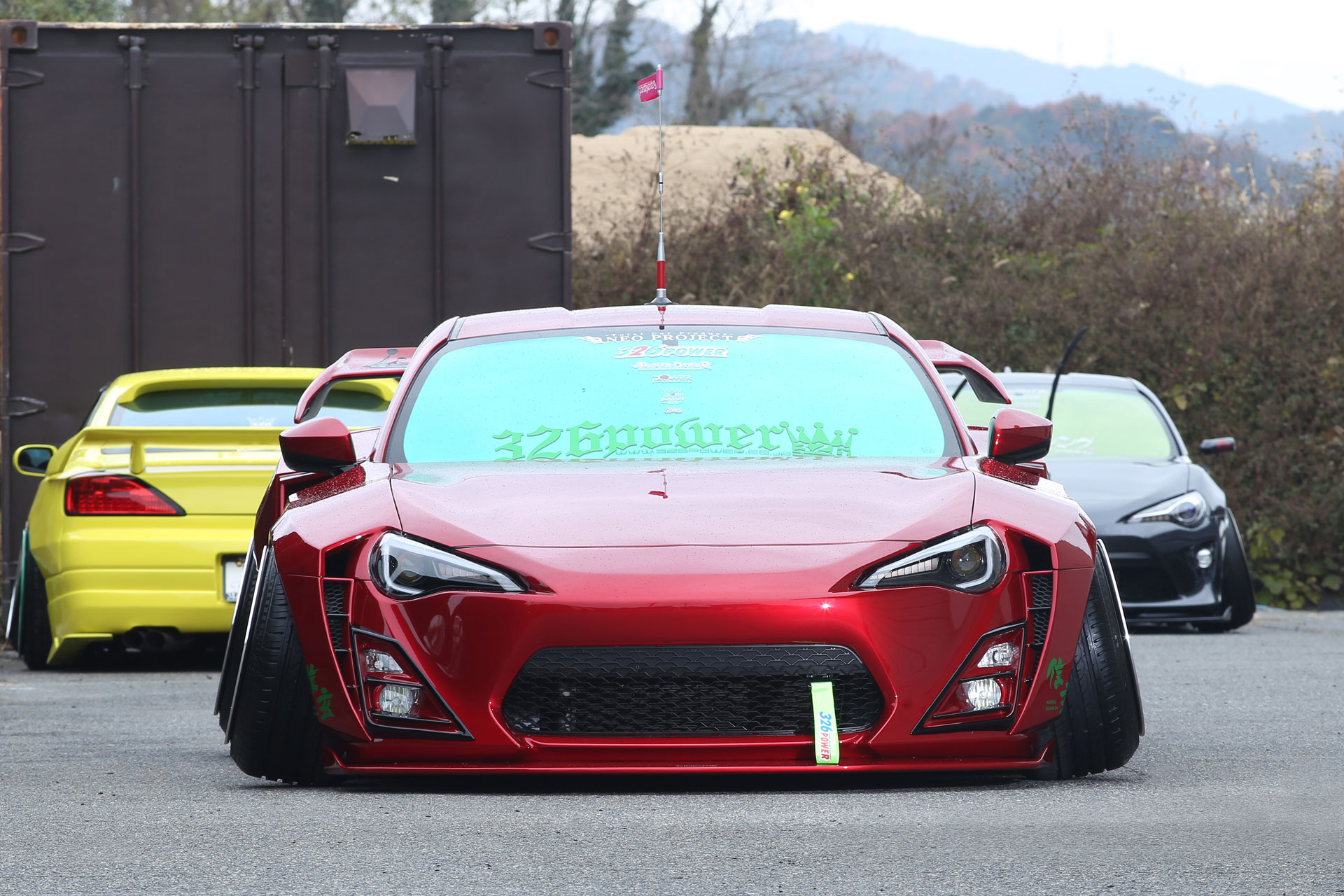

The complete Gachabari WIDE package is designed around extreme body volume combined with carefully shaped details. At the front, the wide fenders incorporate large air-dam and air-duct areas to reinforce the low-and-wide appearance. At the rear, layered intake-style surfaces and a five-duct arrangement add visual complexity to the approximately 200 mm-per-side fender extension. These features prevent the wide body from appearing like a simple flat over-fender conversion and instead create a more sculpted and dynamic overall design.

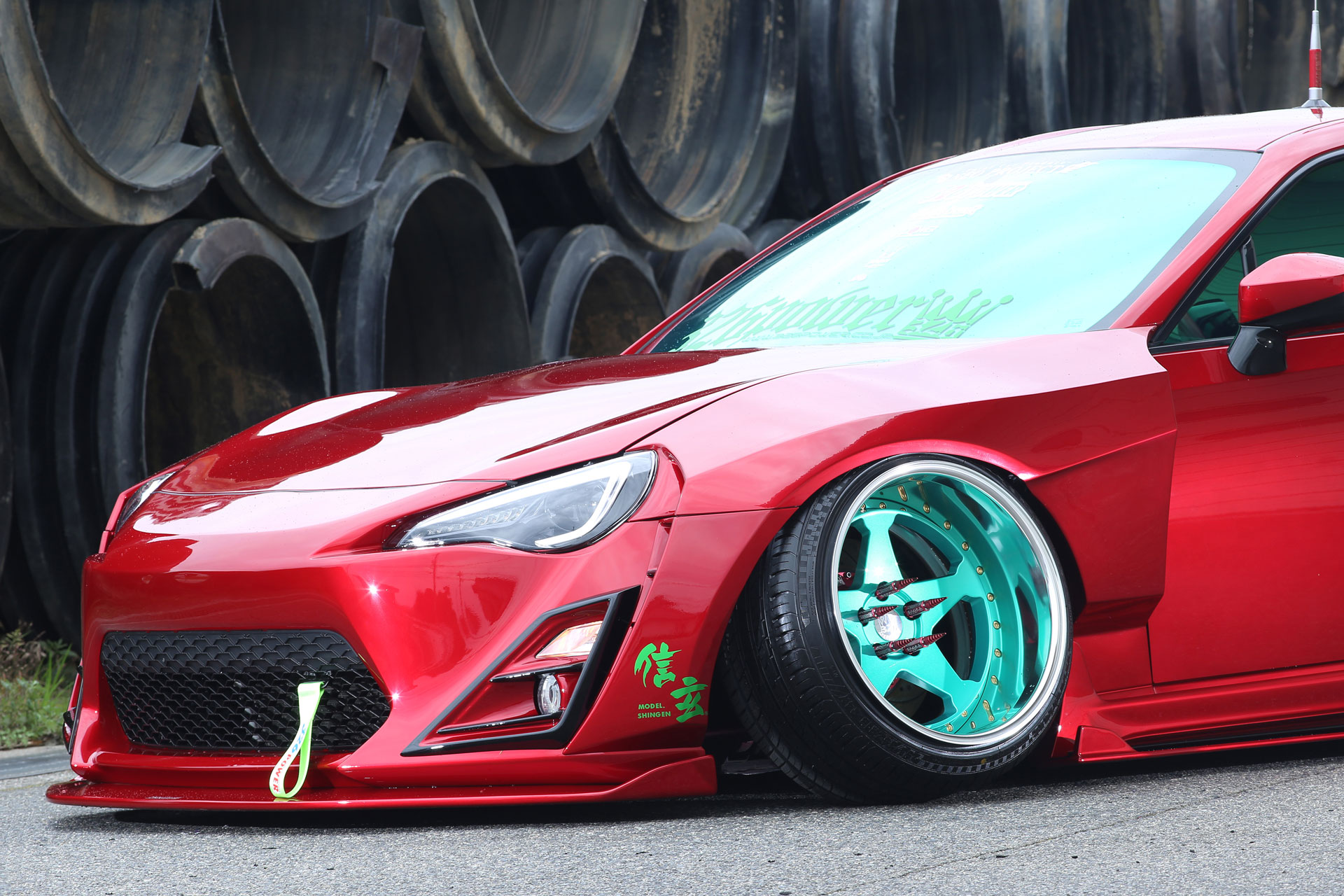

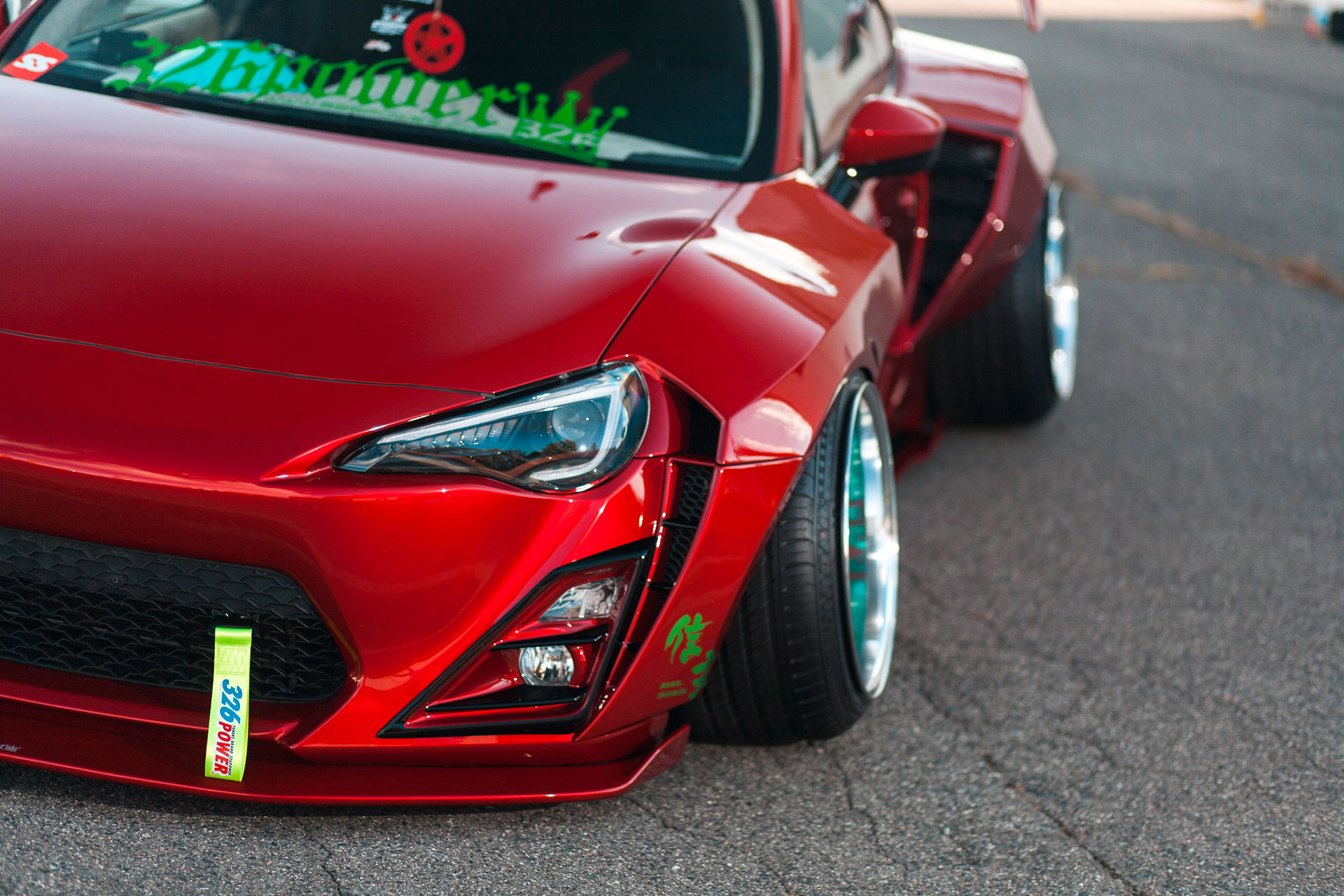

Front Fender Design

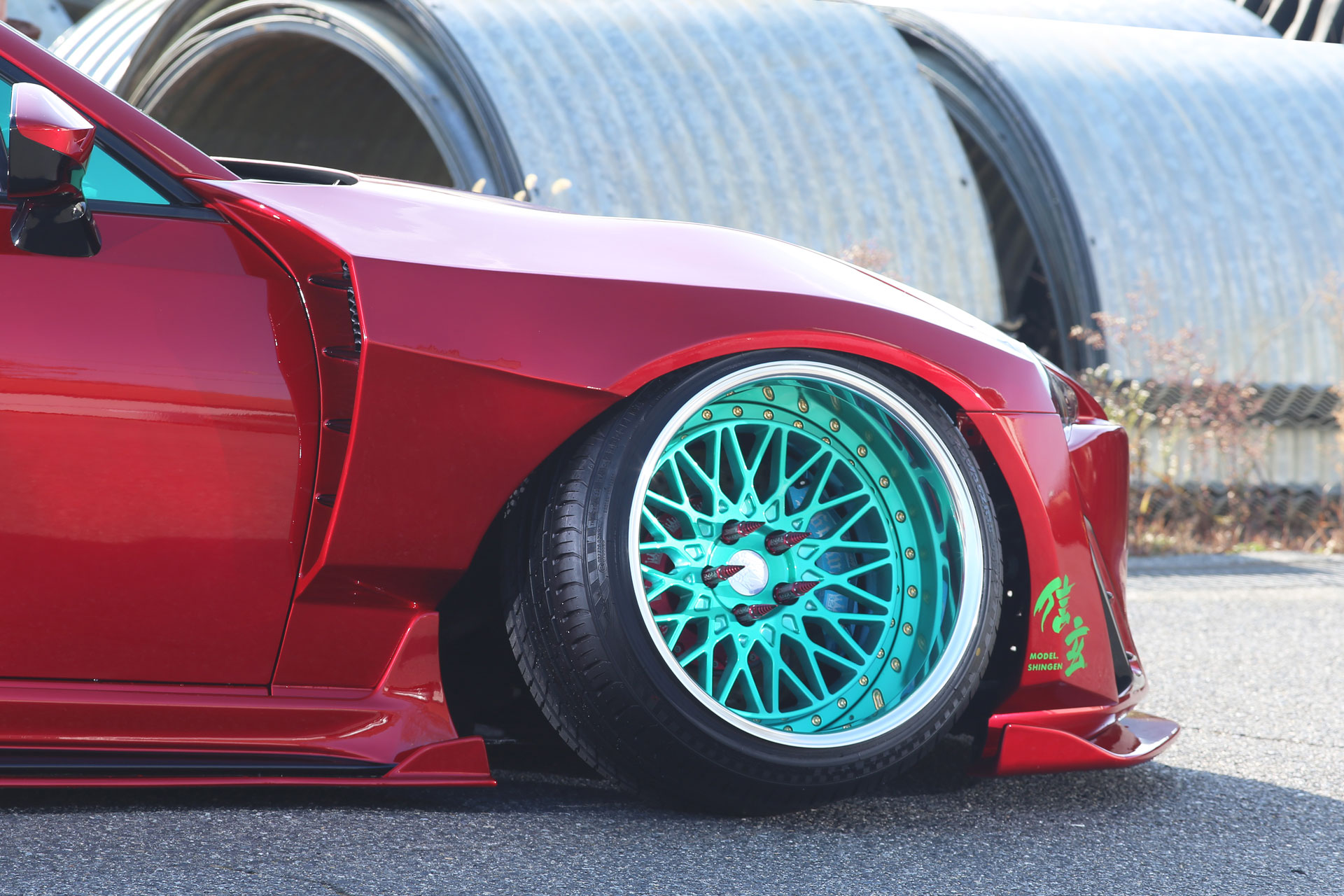

The front section increases the Toyota 86 body width by approximately 150 mm on each side. The complete front package contains four pieces, with 326POWER describing the design as a two-piece structure. Large open air-dam and air-duct areas are incorporated into the design to emphasize the width and create a stronger front view. A bumper-attachment configuration is also available for late-model Toyota 86 applications, so the correct early- or late-model configuration should be confirmed before installation.

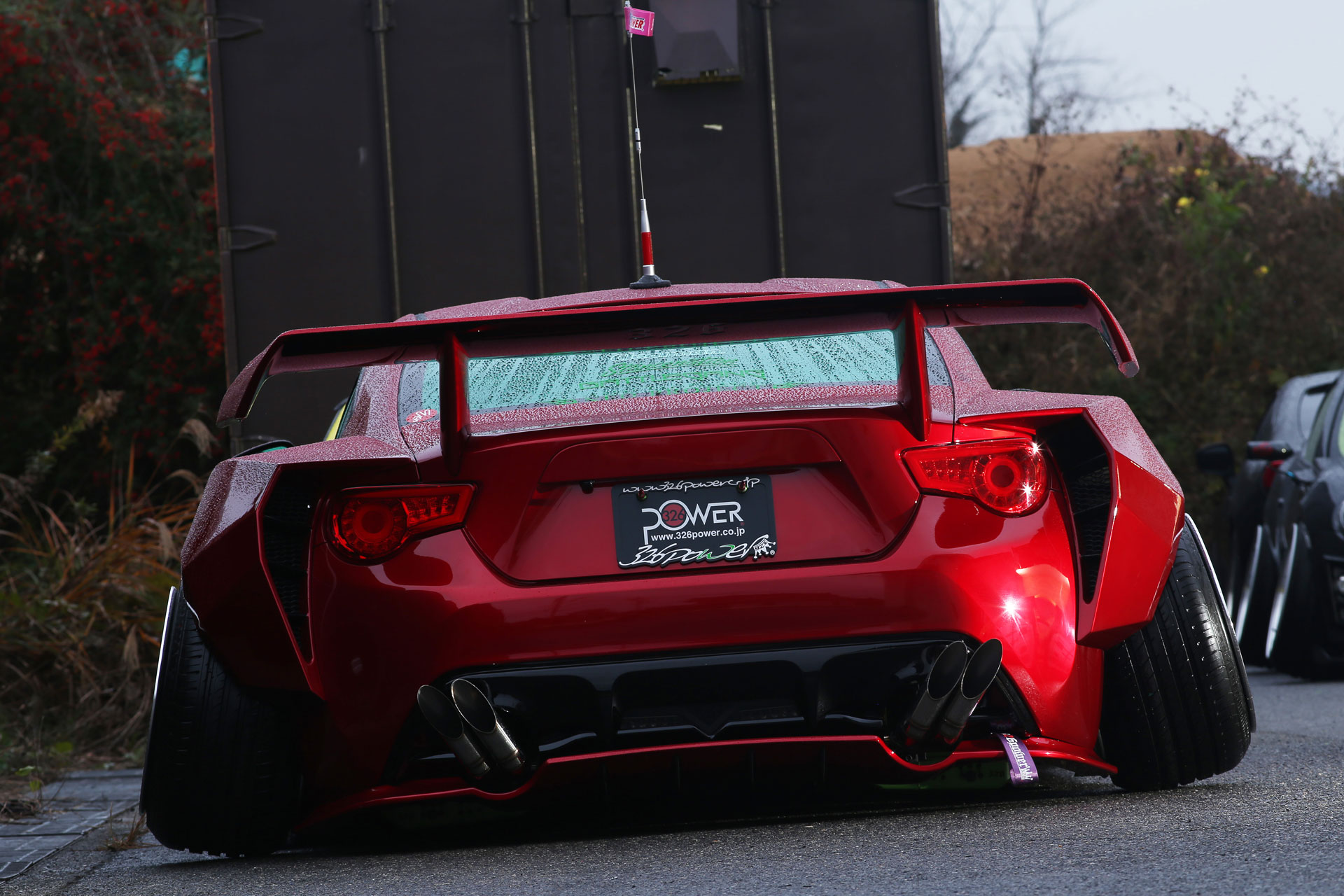

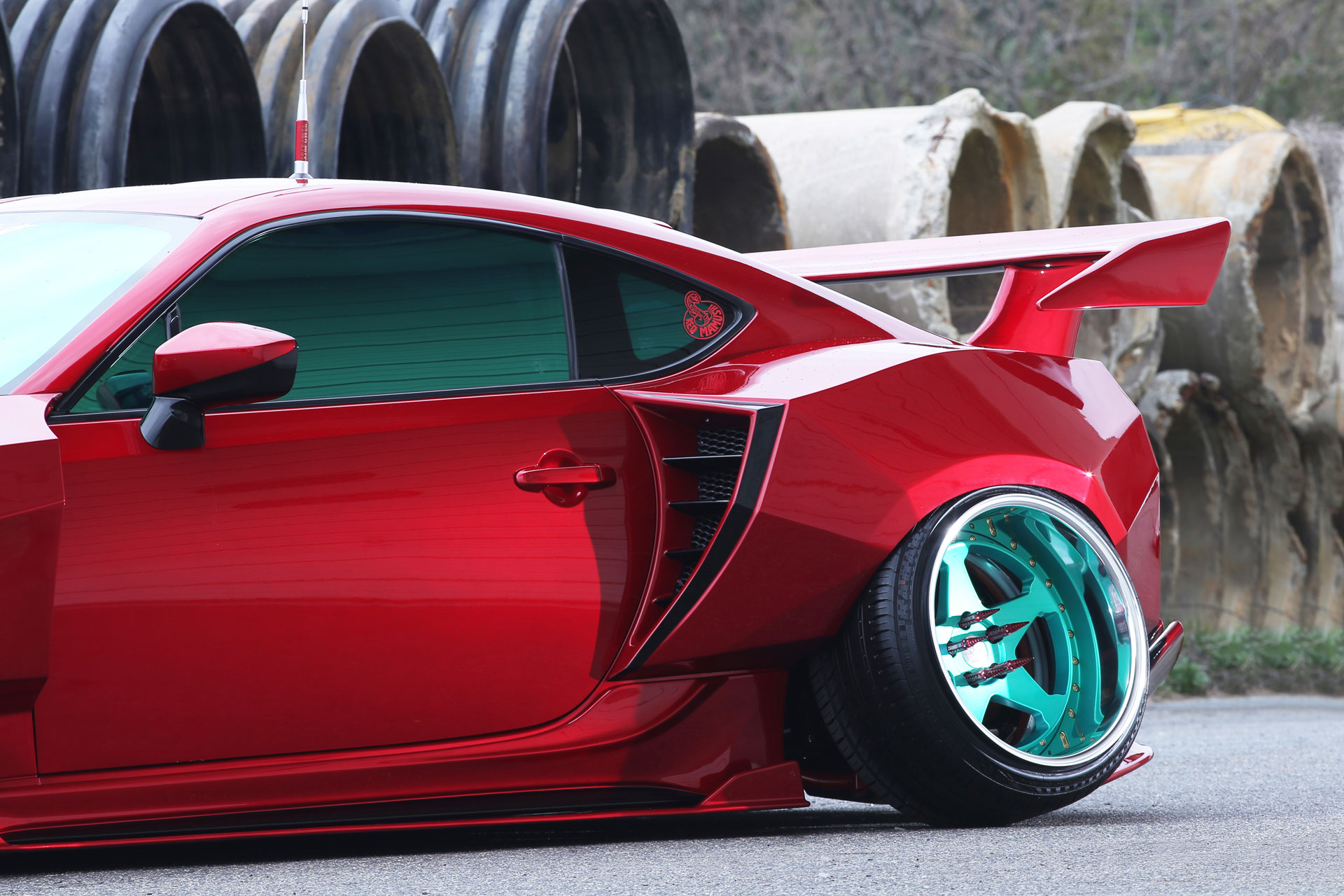

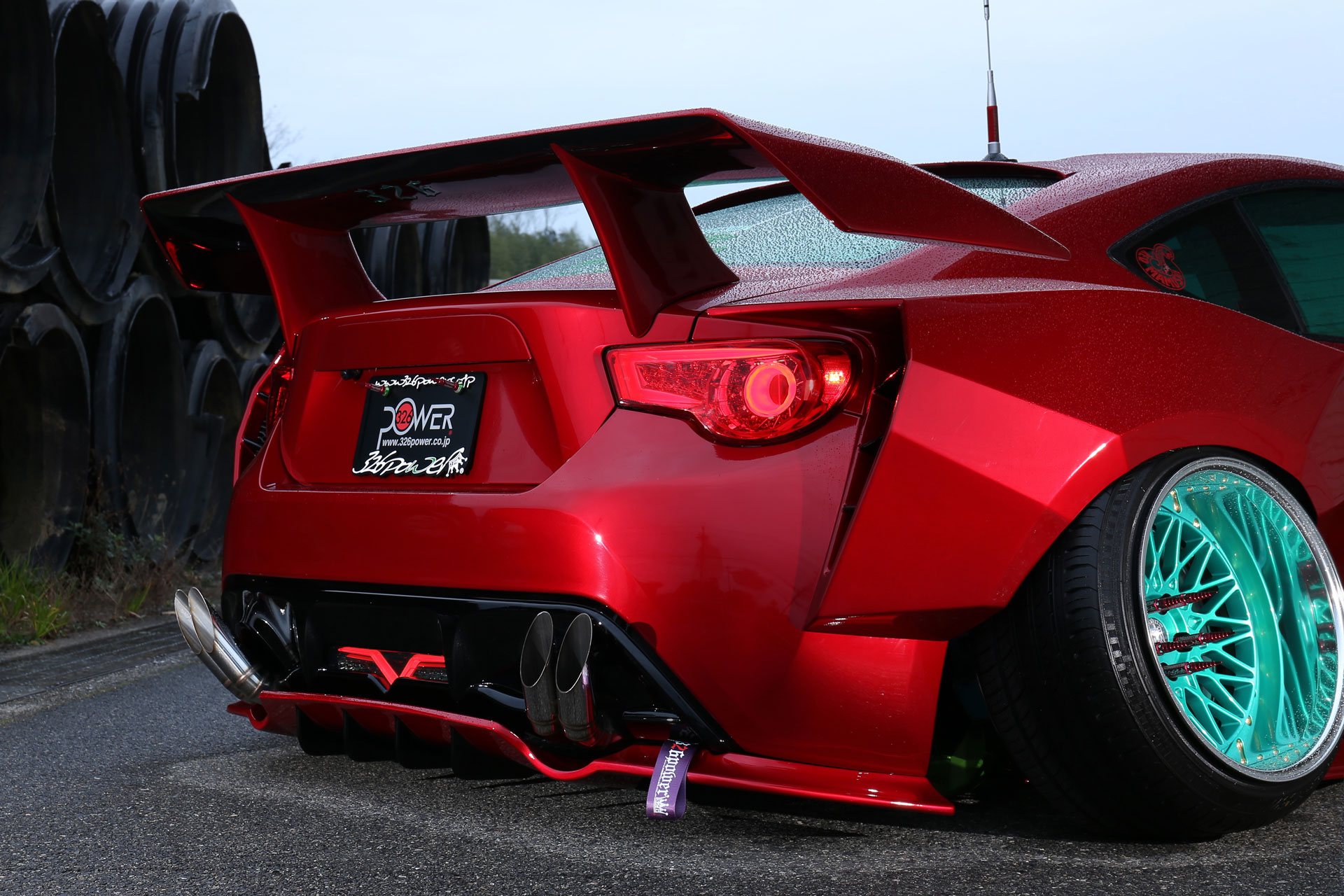

Rear Fender Design

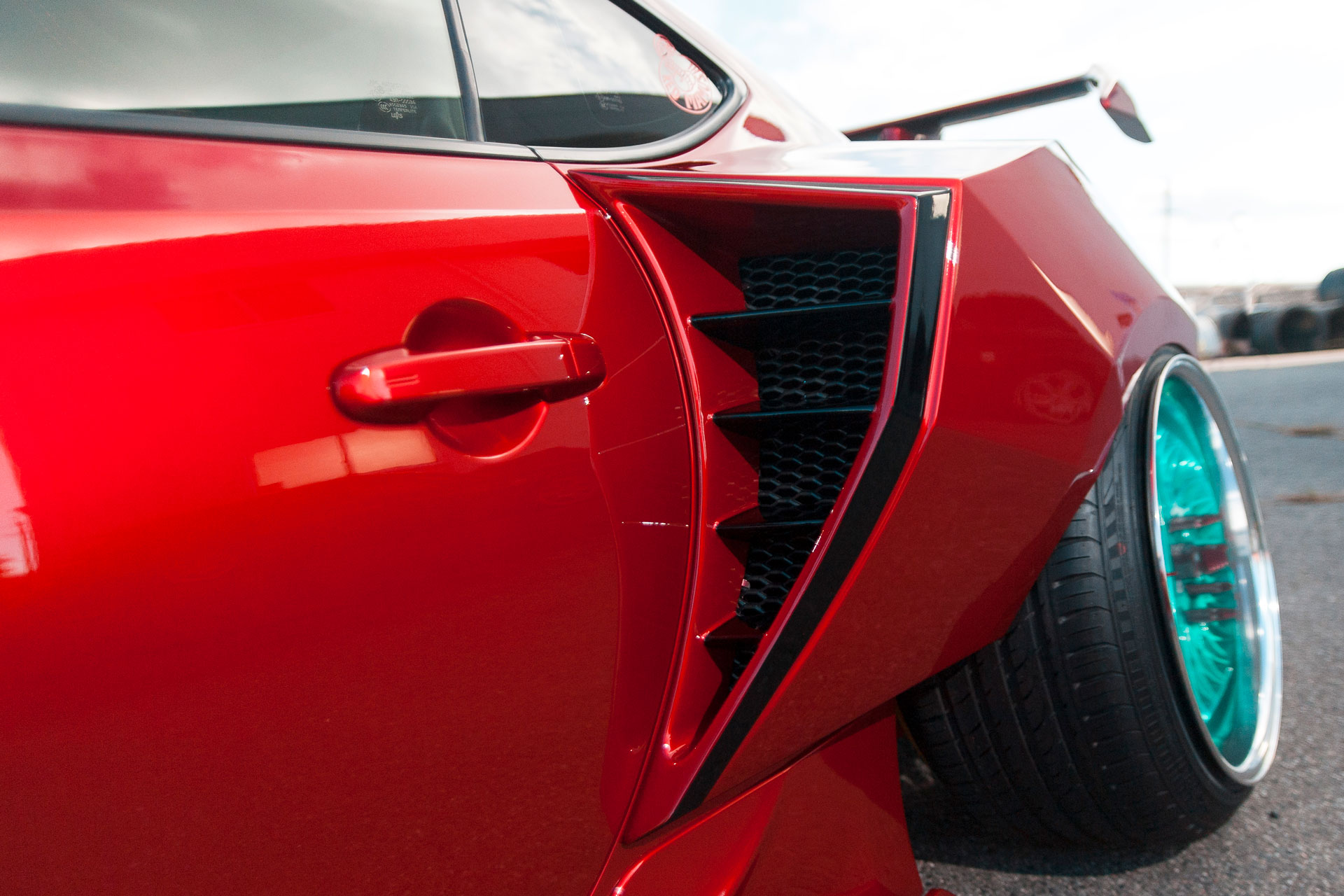

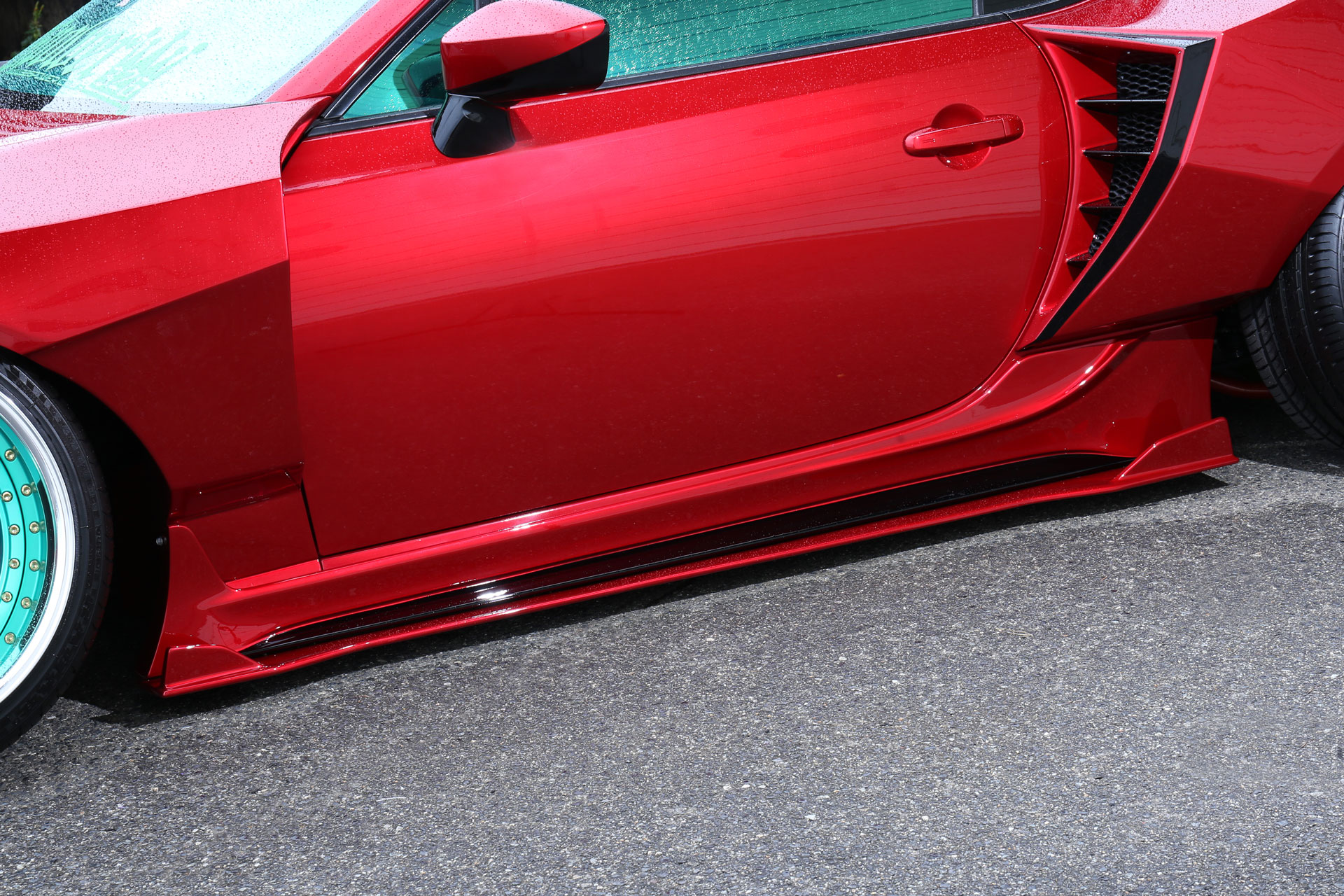

The rear section is even more extreme, adding approximately 200 mm of width on each side. Each rear main fender section uses a one-piece structure and incorporates a five-air-duct design that 326POWER describes as carefully calculated. The large rear fenders give the vehicle substantially more body volume and help create the heavy rear three-quarter appearance that defines the Gachabari WIDE Toyota 86.

Rear Arch and Arch Raise Design

The rear wheel-arch section is approximately 50 mm wide and allows the arch position to be raised by approximately 10 mm or 20 mm. This gives builders additional flexibility when setting up very low ride heights or large-diameter wheel combinations. Raising the arch can help create additional visual and physical space around the wheel area, but the final amount of body modification should be decided according to the suspension, wheel, tire, and intended ride-height setup.

Fuel Filler Cap

The rear fender package includes a fuel filler cap. The official Japanese manufacturer page also notes that the fuel-filler area on the demo vehicle was additionally finished with putty, meaning the seamless appearance seen on that particular car involved extra custom bodywork. Customers wanting the same finished appearance should therefore discuss the required preparation with their body shop rather than assuming the demo-car finish is achieved simply by installing the supplied parts.

Early Model Fitment Note

326POWER specifically states that some modification is required when installing the rear fenders on an early-model Toyota 86. The complete package should therefore not be treated as a simple direct-fit cosmetic conversion. The exact cutting, trimming, fabrication, alignment, and panel work will depend on the individual vehicle and the intended wide-body setup. Professional wide-body installation is strongly recommended.

Late Model Bumper Attachment

The front design uses a multi-piece structure and includes a bumper-attachment arrangement, with 326POWER specifically noting that a late-model version is available. Because the front bumper differs between early and late Toyota 86 models, the installer should confirm the correct bumper-related configuration before completing bodywork or painting.

Compatibility with 3D☆STAR Aero

326POWER specifically highlights that the Gachabari WIDE Toyota 86 works well with the company’s 3D☆STAR lip-type aero package. The manufacturer shows the wide-body setup alongside the 3D☆STAR Front Under Spoiler, Side Step Type 2 with Side Flap, and Rear Under Spoiler. These 3D☆STAR components are separate products unless specifically stated otherwise, but they can be combined with the Gachabari fenders for a more complete 326POWER exterior build.

Wheel and Suspension Planning

Because this package adds approximately 150 mm per side at the front and 200 mm per side at the rear, wheel and suspension planning should be treated as part of the wide-body conversion rather than as a separate decision. Wheel width, offset, tire dimensions, steering clearance, suspension travel, ride height, camber setup, and body clearance can all affect the finished fitment. The official manufacturer does not specify one mandatory wheel or tire specification, so the final setup should be determined according to the individual build.

Installation and Fitment Notes

The complete Front + Rear Fender Set requires extensive test fitting before painting. Front fender alignment, hood gaps, door transitions, front bumper position, bumper attachments, rear-quarter alignment, fuel-filler position, rear bumper relationship, wheel arches, tire clearance, suspension travel, and left-to-right symmetry should all be checked before permanent installation. 326POWER specifically instructs customers to test fit and adjust alignment before painting and notes that if mounting-hole positions are difficult to align, slight elongated-hole processing or similar adjustment may be required. Because this is an extreme wide-body conversion, drilling, cutting, trimming, fabrication, arch modification, panel finishing, and other professional bodywork should be expected depending on the vehicle.

Aero Product Notes

The complete fender package is supplied unpainted in a white gel coat finish, and installation and painting are not included. The parts should be inspected, test fitted, adjusted, prepared, and painted only after the final body position and panel relationships have been established. The current official international page does not clearly state the underlying molded material for this particular set, so a specific material should not be assumed without further manufacturer confirmation. Because the conversion dramatically alters the dimensions and body geometry of the Toyota 86, professional wide-body fabrication and body-shop preparation are strongly recommended.

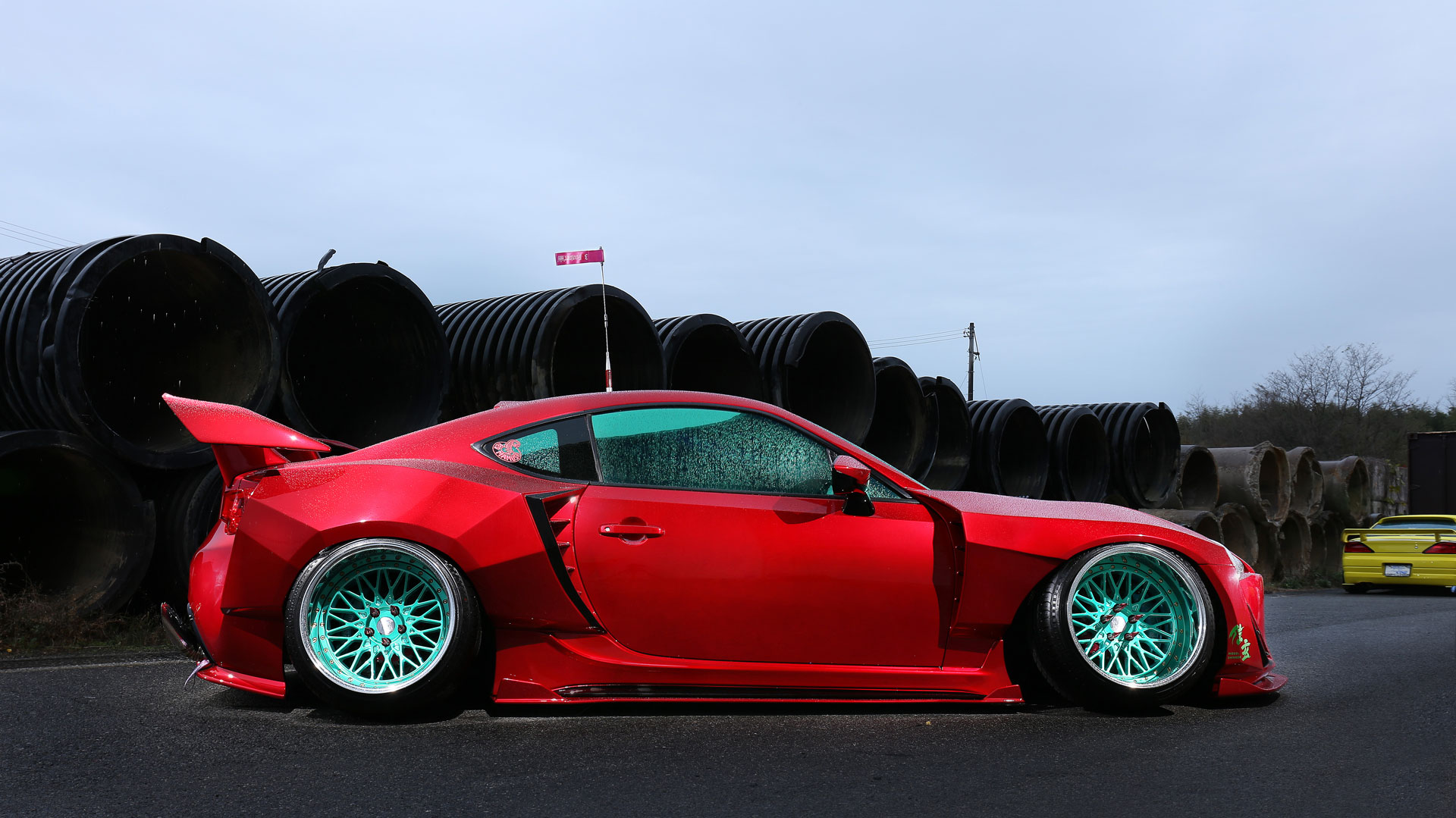

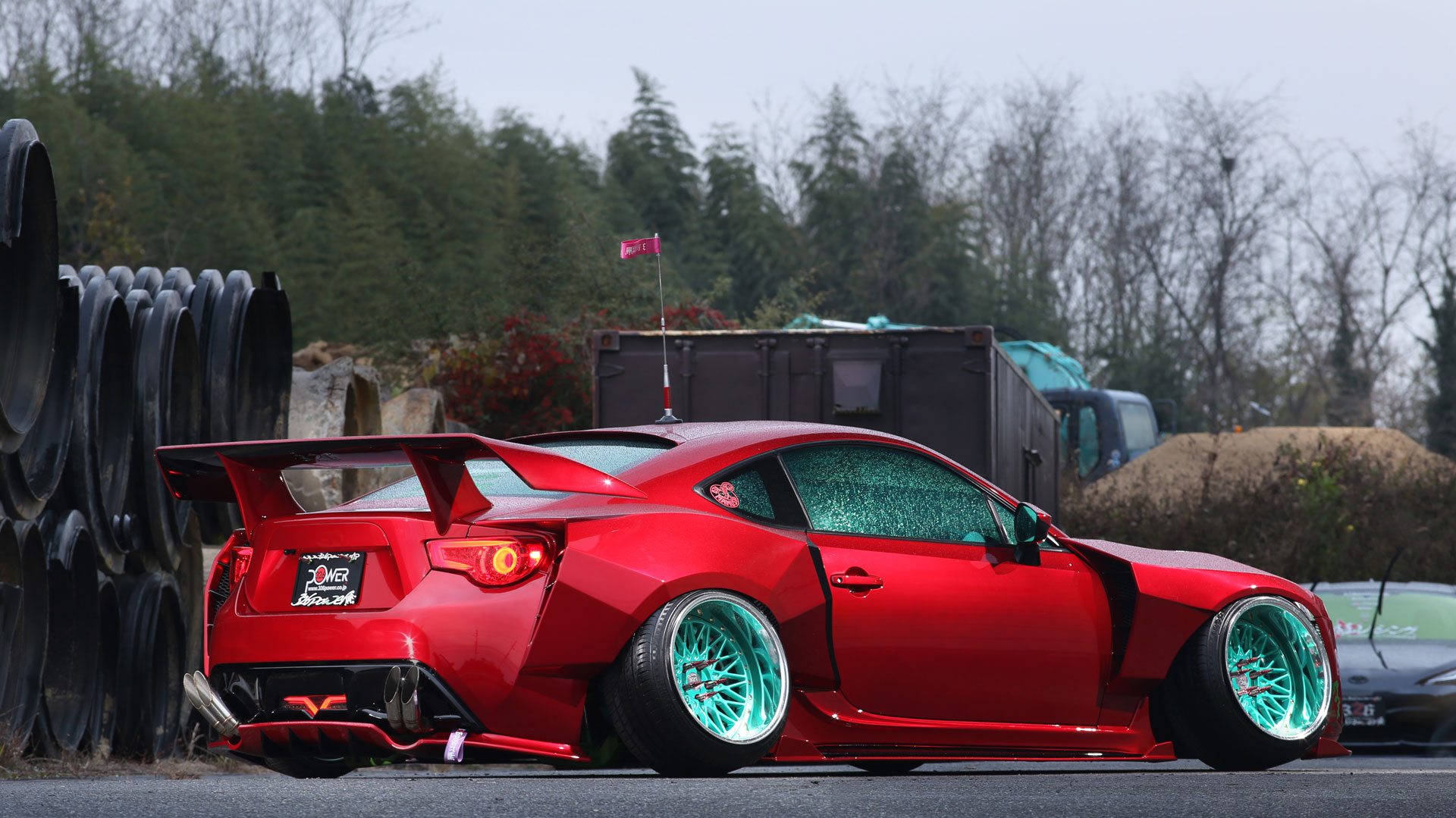

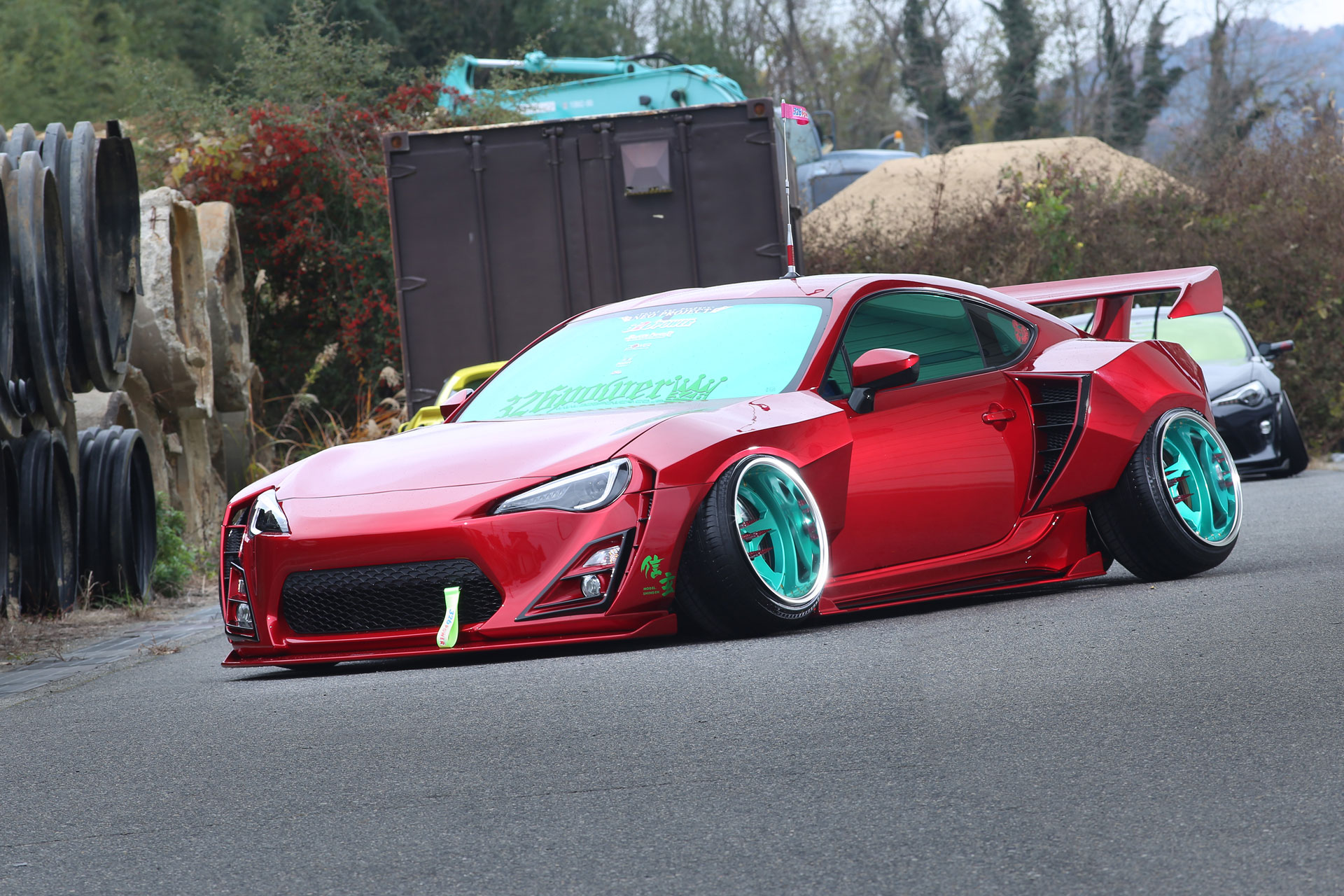

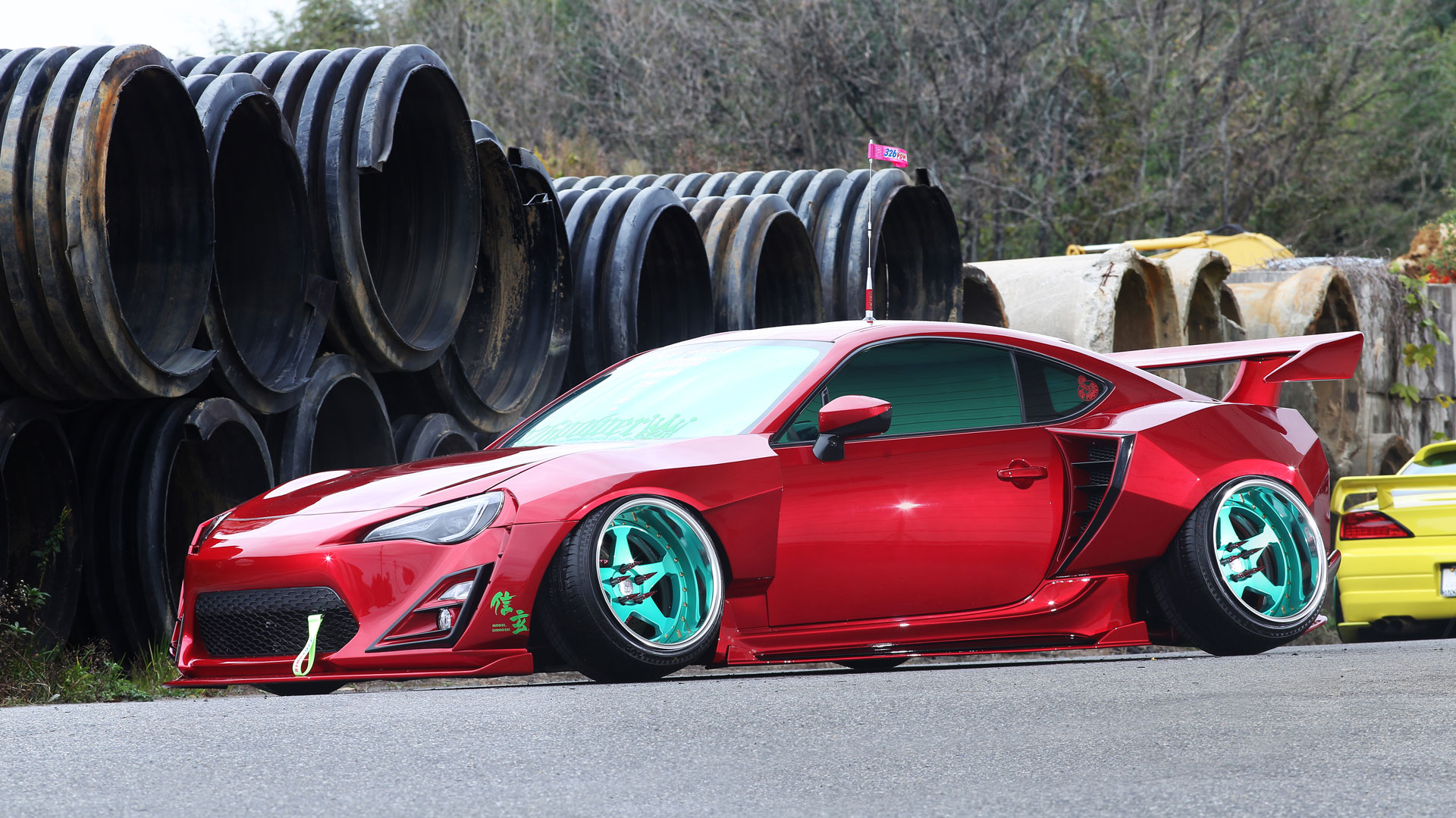

Demo Image Notes

This listing is for the Gachabari WIDE Front + Rear Fender Set. Demo images may show the Gachabari Rear Wing, 3D☆STAR Front Under Spoiler, Side Step, Rear Under Spoiler, wheels, suspension components, brake components, exhaust parts, lighting changes, or other modifications. These additional components should be treated as separate products unless specifically stated as included. The official listing also notes that product images are for illustrative purposes and may differ from the actual supplied product.

Shipping and Lead Time

Availability may vary depending on supplier and production status.
Additional shipping fees may apply depending on destination.
International delivery timing may vary by country, customs clearance, and carrier.

Note: Shipping price listed on website is only for USA customers. For other country, please contact us individually after placing an order. We will revise the shipping quotation.

Important Notes

This is an authentic 326POWER Japan Gachabari WIDE package designed for Toyota 86 Early and Late Model vehicles. The set combines the 4-piece Front Fender package and 2-piece Rear Fender package, creating approximately 150 mm of additional width per side at the front and approximately 200 mm per side at the rear. The rear package includes the fuel filler cap, while the rear wheel-arch area is approximately 50 mm wide and can be raised by approximately 10 mm or 20 mm. The front design uses a multi-piece structure with large air-dam and air-duct detailing, while the rear uses one-piece main fender sections with five-air-duct styling. Some modification is specifically required when fitting the rear fenders to an early-model Toyota 86. The product is supplied unpainted in white gel coat and requires extensive test fitting, body preparation, alignment, and painting before final installation. Gachabari Rear Wing, 3D☆STAR aero, wheels, suspension components, brakes, exhaust parts, and other accessories shown on demo vehicles are separate unless specifically stated otherwise. 326POWER states that the product was developed for show and event use and does not guarantee vehicle-inspection compatibility or assume responsibility for public-road use. Professional wide-body fabrication and body-shop installation are strongly recommended.

FAQ

Is this an authentic 326POWER product?
Yes. This is an authentic 326POWER Japan Gachabari WIDE product.

What vehicles is this Front + Rear Fender Set designed for?
It is designed for Toyota 86 Early and Late Model vehicles.

What is the SKU?
The official 326 International SKU is Gachabarifender86.

What is included in the set?
The package combines the 4-piece Gachabari WIDE Front Fender set and 2-piece Gachabari WIDE Rear Fender set. The rear package also includes the fuel filler cap.

How many main fender pieces are included?
The front package contains four pieces and the rear package contains two main fender pieces, giving six main fender pieces in the combined package.

How much wider does the front become?
The Gachabari WIDE front section increases the body width by approximately 150 mm per side.

How much wider does the rear become?
The rear section increases the body width by approximately 200 mm per side.

How wide is the rear wheel-arch section?
The rear arch section is approximately 50 mm wide.

Can the rear wheel arch be raised?
Yes. 326POWER states that it can be raised by approximately 10 mm or 20 mm.

Is the fuel filler cap included?
Yes. The rear fender package includes a fuel filler cap.

Will the fuel-filler area look exactly like the demo vehicle?
Not necessarily. 326POWER notes that the demo vehicle’s fuel-filler area was additionally finished with putty, so achieving the same seamless appearance requires extra bodywork.

What is special about the front fender design?
The front widens the body by approximately 150 mm per side and incorporates large air-dam and air-duct styling to create a much stronger low-and-wide appearance.

What is special about the rear fender design?
The rear widens the vehicle by approximately 200 mm per side and uses a one-piece main fender design on each side with five-air-duct styling.

Does an early-model Toyota 86 require modification?
Yes. 326POWER specifically states that some modification is required when installing the rear fenders on an early-model Toyota 86.

Is there a late-model-specific front configuration?
Yes. 326POWER notes that a bumper-attachment configuration is available for the late-model Toyota 86.

Does this set include the Gachabari Rear Wing?
No. The Gachabari Rear Wing is a separate product.

Does this set include 3D☆STAR aero parts?
No. 3D☆STAR Front Under Spoiler, Side Step, Rear Under Spoiler, and other aero components are separate unless specifically stated otherwise.

Can the Gachabari WIDE fenders be combined with 3D☆STAR aero?
Yes. 326POWER specifically highlights compatibility with its 3D☆STAR lip-type body kit.

What finish does the set come in?
The fender package is supplied unpainted in a white gel coat finish.

Does the set come painted?
No. Painting and installation are not included.

Does everything need to be test fitted before painting?
Yes. 326POWER specifically requires test fitting, alignment adjustment, and fitment correction before painting.

Can mounting-hole adjustment be required?
Yes. If mounting holes are difficult to align, minor elongated-hole adjustment or similar fitment work may be required during test fitting.

Will significant bodywork be required?
Yes. This is an extreme wide-body conversion, and cutting, trimming, fabrication, arch work, bumper adjustment, panel alignment, and other professional bodywork may be required depending on the vehicle and intended build.

Should wheels and suspension be planned together with the kit?
Yes. Because of the approximately 150 mm front and 200 mm rear width increases per side, wheel width, offset, tire size, suspension height, steering clearance, and overall stance should be planned together with the wide-body conversion.

Can demo images show additional products?
Yes. Rear Wing, 3D☆STAR aero components, wheels, suspension, brakes, exhaust parts, and other modifications may appear in demo images and are separate unless specifically stated as included.

Can this be used on public roads?
326POWER states that the product was developed for shows and events and does not guarantee vehicle-inspection compatibility or assume responsibility for damage resulting from public-road use.

Is professional installation recommended?
Yes. Because this package creates an extreme front and rear wide-body conversion, professional fabrication, test fitting, panel preparation, alignment, painting, and final installation are strongly recommended.
